Changchun BRD Optical Co., Ltd.

OPIE '23

住所	〒130012 No. 399 Bo Cai Road, High-Tech Development Area, Changchun, Jilin, China
TEL	86-431-81884163
FAX	86-431-81884162
URL	https://www.brdoptical.com/
E-mail
	最終更新日：2020年04月22日

OPIE '23 出展の見どころ

Ecoptik can customize and process various hyper-hemispherical domes and high-precisionspherical lens.Econptik has our own intellectual property.Including 2 invention patent and 3 Utility model patents.main products: Precision and commercial grade optical windows
• Precision and commercial grade optical mirrors
• High Quality optical domes
• Lenses (Singles, doublet or triplet spherical)
• Cylindrical lenses
• Coating (AR or HR Metal coating)
• Single- and double-sided optical flats
• Prisms
• Reticules
• Optical filters ( BP, LP, SP, IR cut, ND and Dichroic )
• Beamsplitters
• Optical lens assemblies

企業PR

BRD Optical have 15years experience in optics processing field.ISO9001:2015,ISO14001-2015,RoHS certificate supplier.The products used in laser applications,Inspection instumentation,imaging,Fluorescence,Laser Applications,Detectors& analysers,defence,security&aerospace;,university and research etc.

取扱海外企業

Changchun BRD Optical Co., Ltd.

Changchun BRD Optical Co., Ltd. 取り扱い製品

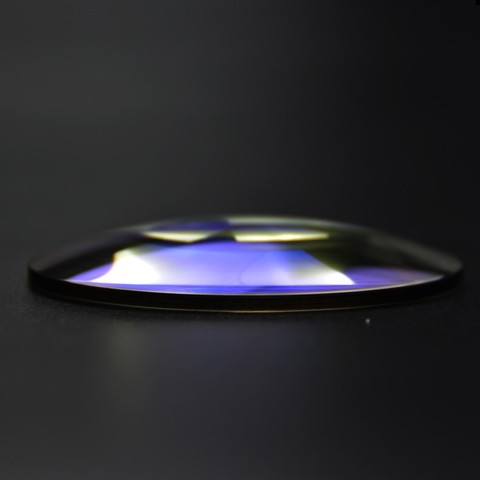

Spherical lens

Spherical lens

BRD Optical's spherical lenses Material Optical grade glass/ Fused Silica/ Sapphire/Ge/CaF2/ZnSe/
Diameter 0.5mm~400mm
Diameter Tolerence ±0.05mm~±1mm
Surface Quality 10-5
Surface Accuracy λ/20
Centration 5 arc sec.
Coating As per customer's request

Optical dome

Optical dome

BRD Optical dome lens have good parallel tolerance <±2μm,L/4 good flatness and 10-5 surface qualty etc.

BRD Dome lens mainly are hemisphere, hyper-hemisphere,dome with flange and customized designing. Whether it is visible dome, UV dome or IR dome.

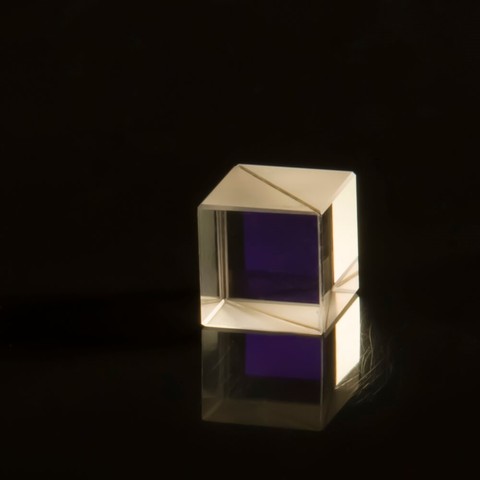

Cube Beamsplitter

Cube Beamsplitter

Cube beamsplitter Material Optical glass BK7 / ZF glass
Dinension tolerance ±0.1mm
Flatness λ/4 @ 632.8nm
Surface quality 20/10
Angle tolerance < 30 arc sec.
Principal transmittance Tpave > 96%, Ts,1% (Narrowband)
Tpave > 95%, Ts,1% (Broadband)
Principal reflectance Rs>99%, Rp<5%
Coating
Hypotenuse face: Polarization beamsplitter coating;
All input and output face: AR Coating

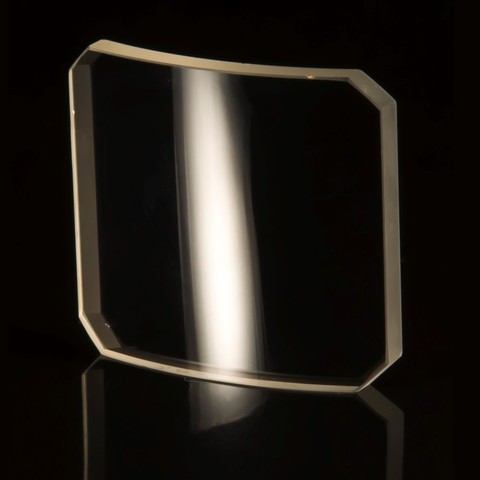

Meniscus Cylindrical lens

Meniscus Cylindrical lens

Meniscus Cylindrical Lens can increase the NA of the system while only adding slightly to the total spherical aberrations. The Negative Meniscus Lens is used to increase the focal length of another lens while maintaining the angular resolution of the optical assembly. This lens shape is best used when one conjugate is relatively far from the lens.

Scanning Mirror

Scanning Mirror

The scanning mirror applications include ultra-high dynamic, low inertia scanning mirrors for laser processing, streak cameras, LIDAR, security, sensing and targeting applications, where the enhanced flexural strength, homogeneity, high resonant frequencies, ultra-low inertia, and optical surface quality are key.

Optical domes

Optical domes

ECOPTIK's dome lens have good parallel tolerance <±2μm,L/4 good flatness and 10-5 surface qualty etc.

BRD Dome lens mainly are hemisphere, hyper-hemisphere,dome with flange and customized designing. Whether it is visible dome, UV dome or IR dome.

Spherical lens

Spherical lens

Spherical lens is used in scientific research in laser medical,automobile,intelligent robot and other fields.S/D 10-5,PV L/20,Centration<30arcsec,chamfer<0.1mm@45°

Cylindrical lens

Cylindrical lens

Meniscus Cylindrical Lens can increase the NA of the system while only adding slightly to the total spherical aberrations. The Negative Meniscus Lens is used to increase the focal length of another lens while maintaining the angular resolution of the optical assembly. This lens shape is best used when one conjugate is relatively far from the lens.

Cube Beamsplitter

Cube Beamsplitter

Cube beamsplitter Material Optical glass N-BK7
Dinension tolerance ±0.1mm
Flatness λ/4 @ 632.8nm
Surface quality 20/10
Angle tolerance < 30 arc sec.
Principal transmittance Tpave > 96%, Ts,1% (Narrowband)
Tpave > 95%, Ts,1% (Broadband)
Principal reflectance Rs>99%, Rp<5%
Coating
Hypotenuse face: Polarization beamsplitter coating;
All input and output face: AR Coating

Scanning Mirror

Scanning Mirror

The scanning mirror applications include ultra-high dynamic, low inertia scanning mirrors for laser processing, streak cameras, LIDAR, security, sensing and targeting applications, where the enhanced flexural strength, homogeneity, high resonant frequencies, ultra-low inertia, and optical surface quality are key specification.
