CoreOptics Technology Inc.
CoreOptics Technology Inc. 取り扱い製品

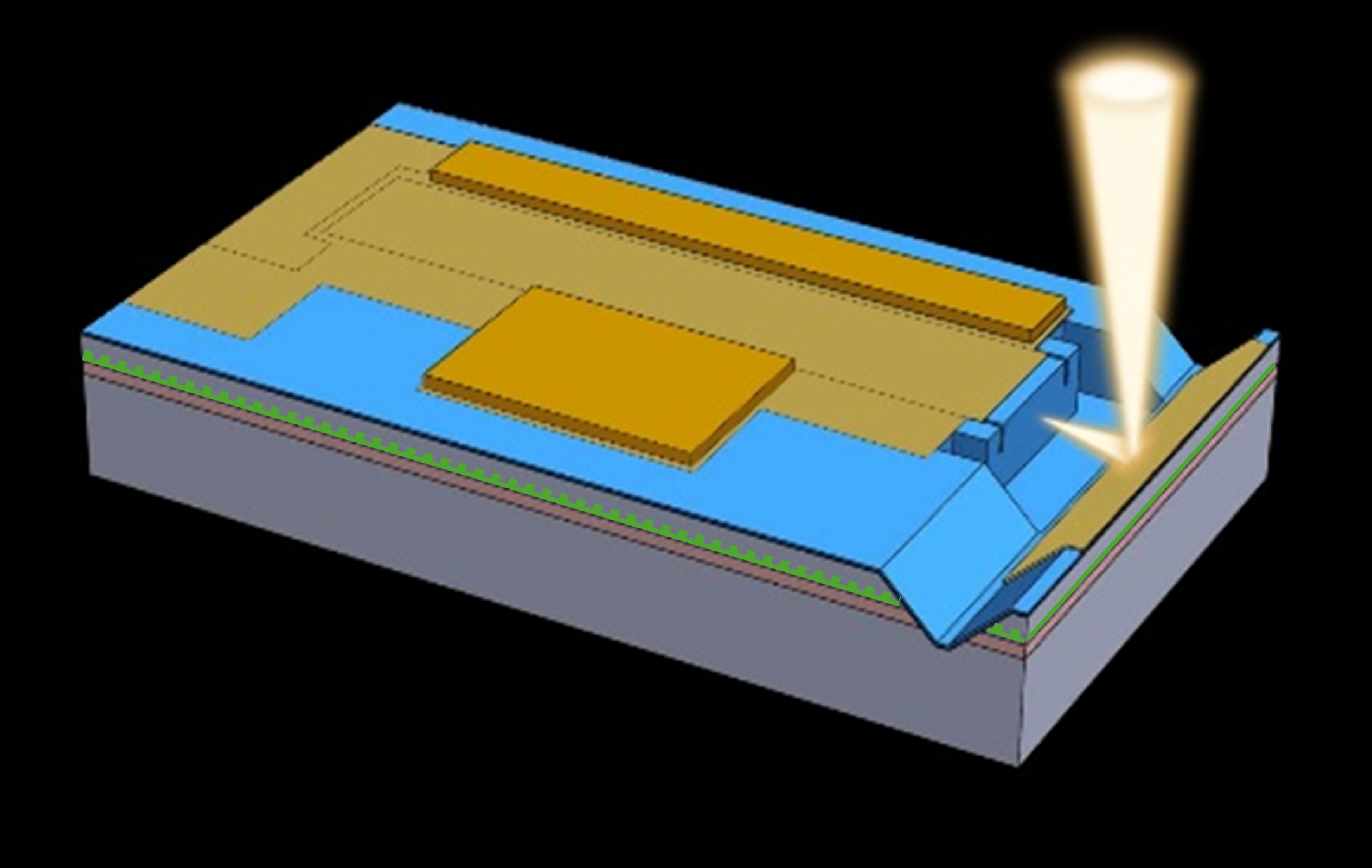

短波赤外線水平共振器型面発光レーザー FP HCSEL(1310nm/1460nm)
Our Short-Wavelength-Infrared (SWIR) 1310nm/1460nm HCSEL chip achieves 400mW output power. The HCSEL is available as bare chip or in 0402 SMD package. Target applications include under-display proximity sensing in smartphones, bio-sensing, and other wearable devices. Currently, the 1310nm HCSEL has been successfully implemented to the mobile phone supply chain.
分布帰還型水平共振器型面発光レーザー DFB HCSEL 1310nm
The 1310nm DFB-HCSEL offers high power continuous wave output, making it suitable as a light source for optical engines in transceiver modules. Its surface-emitting feature provides significant advantages for integration into photonic integrated circuits (PICs).
High Speed 980nm VCSEL
*Top-side or Back-side emission
*Selective Oxidation VCSEL.
*Suitable for high speed fiber communication application. Data rates up to 25Gb/s
*Low threshold and operating current
*Anode and cathode bond pad on front side.
*Operation temperature 0~85℃
25/100G PD
*40um optical detection mesa area.
*Top-side illuminated device.
*AR coating for wide wavelength range.
*High cut-off frequency.
*Low dark current and capacitance.
ResoLight (400~1550nm)
*Unique monolithic nano-porous DBR technology.
*Low FWHM (10nm or lower @ blue light)
*Low Divergent Angle (<50 degree @ blue light)
*Wavelength stability during temperature and injection changed.
*Operation temperature -40~85℃
