QS Lasers, UAB

住所	〒LT-03153 Naujoji Riovoniu st. 25B, Vilnius, Vilnius, Lithania
TEL	37064855222
FAX
URL	https://www.qslasers.com/
E-mail
	最終更新日：2024年02月26日

企業PR

QS LASERS is a cutting-edge manufacturer of compact, sub-nanosecond and picosecond high-energy air-cooled Q-switched DPSS lasers. The company's core focus lies in applications that require high pulse energy, short pulse duration and low repetition rates. Therefore, QS Lasers’ products can become a perfect solution for Laser-Induced Breakdown Spectroscopy (LIBS), LIDAR, OLED repair, laser skin treatments and medical applications. Moreover, the company extends tailored customization options and series production capabilities, specifically catering to the needs of OEMs.

QS Lasers, UAB 取り扱い製品

Diode Pumped Sub-Nanosecond Passively or Actively Q-Switched 880 nm Mini Laser

Ultra-compact passively or Actively Q-switched 880 nm Pump laser with less than 0.5 ns (Actively Q-switched) pulse duration and repetition rate up to 10 kHz. Optional conversion to 440 nm is also avaliable.

Diode Pumped Picosecond Passively Q-Switched Laser MPL2210

MPL2210 series DPSS passively Q-switched picosecond laser deliver high peak powers > 7 MW at 100 Hz repetition rate. Sub-nanosecond pulse duration of <250-270 ps, high pulse energy (2 mJ) and variable repetition rate (1-100 Hz) covers many applications like pollution monitoring, DNA analysis, supercontinuum generation and others.

Diode Pumped Picosecond Passively Q-Switched Lasers MPL2310/ MPL2510

MPL2310-MPL2510 series DPSS passively Q-switched picosecond lasers deliver high peak powers > 5 MW at 100 Hz repetition rate. Sub nanosecond pulse duration of < 500 ps (<300 ps MPL2310), high pulse energy >2 mJ, variable repetition rate 1-100 Hz covers pollution monitoring, DNA analysis, supercontinuum generation and other applications.

"Diode Pumped Picosecond Passively Q-Switched Laser MPL2210"

MPL2210 delivers high peak powers > 7 MW at 100 Hz repetition rate. Short laser cavity is fixed on thermo-stabilized and controlled baseplate which gives extremely stable output parameters performance. Sub-nanosecond pulse duration of < 250-270 ps, high pulse energy more than 2 mJ, variable repetition rate from 1 Hz to 100 Hz covers many applications like skincare, pumping, aesthetic lasers, LIBS, pollution monitoring, DNA analysis and many others. Due to short pulse duration and high pulse energy laser delivers high peak power which is up to 7 MW. Optional conversion to green (532 nm) and ultraviolet (355 nm) is also available.

Diode Pumped Picosecond Passively Q-Switched Laser MPL2310

MPL2310 delivers high peak powers > 5 MW at 100 Hz repetition rate. Short laser cavity is fixed on thermo-stabilized and controlled baseplate which gives extremely stable output parameters performance. Sub-nanosecond pulse duration of < 350 ps, high pulse energy more than 2 mJ, variable repetition rate from 1 Hz to 100 Hz makes it a perfect seeder for amplifiers, covers medical, skincare, LIBS and other applications.
Due to short pulse duration and high pulse energy laser delivers high peak power which is up to 5 MW. Optional conversion to green (532 nm) and ultraviolet (355 nm) available.

Angis Gain-Switched 1064 nm Picosecond Mini Laser

Angis is one of our latest innovations. It’s a compact picosecond laser which can be offered with actively or passively Q-switched capability and crafts exceptional powers up to 1 µJ (>100 µJ after the first amplification stage) at 10 kHz repetition rate. Short
innovative laser cavity is fixed on thermostabilized
baseplate which gives extremely
stable output parameters performance. It is also a great fit for series production. Main applications are spectroscopy, micromachining, sattelite communication.

MPL15100 series DPSS actively Q-switched sub-nanosecond laser

MPL15100 series DPSS actively Q-switched sub-nanosecond lasers deliver high peak powers (> 700 kW) in less than 700 ps pulse duration at 1000 Hz repetition rate. Innovative short laser cavity is fixed on thermo-stabilized and controlled baseplate which gives extremely stable output parameters. Small footprint is welcome point for integration into OEM lasers.

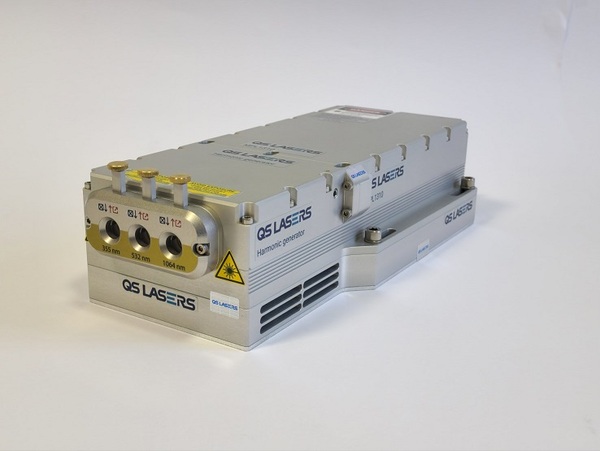

Sub-nanosecond pulse duration of < 700 ps, pulse energy more than 0.5 mJ, repetition rate from 1 Hz to 1000 Hz covers broad spectrum of applications starting from LIBS, LIF, spectroscopy to supercontinuum generation. Harmonics generator to green (532 nm) and ultraviolet (355 nm) is also available.
