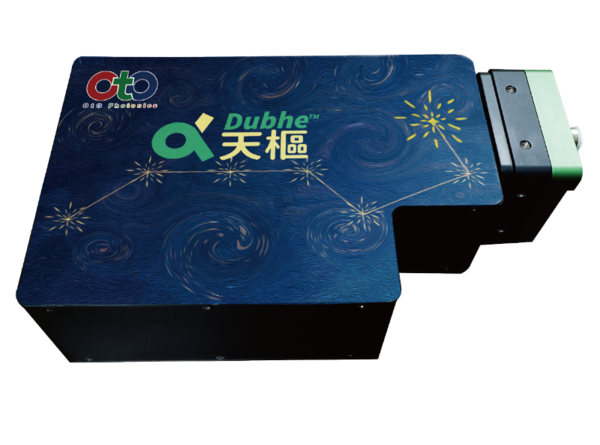

The Dubhe (DB) Series spectrometers are designed for the high-resolution, high sensitivity measurements for Optical Coherence Tomography (OCT) applications. DB features a new transmissive optical design with an improved integrated body, employing patented alignment mechanism to deliver ultra-high (0.04nm) optical resolution. Two versions with different CMOS camera max line rates: 80kHz or 20kHz for different application needs.

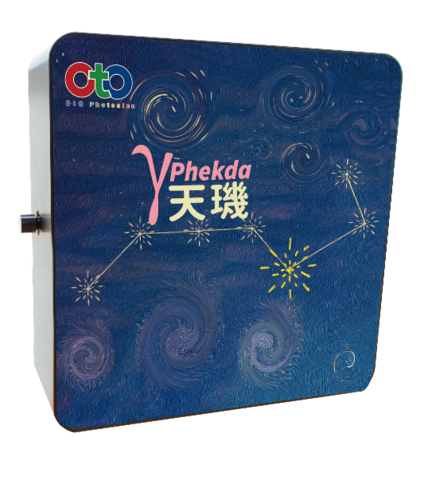

The PhecDa (PD) Series spectrometers consist of CCD/CMOS
sensors. PhecDa features a new
T-R-T (Transmissive-Reflection-Transmissive) optical design, simple
and optimized for LIBS or high resolution(<0.1nm in 100nm Range) requirement. The optical
bench is rigid and stable for measurement system with
outstanding stability of thermo-hydro variation, vibration and shock
on resolution and wavelength shift performance.

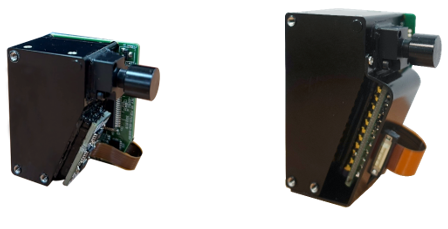

SilverBullet (SB) & RedBullet (RB) Series spectrometers introduce an integrated Czerny-Turner design for an extremely compact and light package: 40x 36.3 x 25.1mm^3 & 51.4x 36.3 x 29 mm^3
Despite its compact form-factor SB & RB features an extremely rigid optical bench ensuring a platform with excellent thermal, humidity, shock and vibration stability.
