OPIE '25 出展の見どころ

Exail empowers photonics engineers with high-performance, innovative and reliable optical solutions that have proven their relevance for laser, quantum, sensing, or space applications.
-Optical modulation
-Specialty optical fibers
-Laser systems
-Free space micro-optics assembly
-Quantum & metrology instrument
-Optical Fiber Bragg Grating & Optical Filters
-Space grade components

企業PR

Exail is a leading high-tech industrial company specializing in cutting-edge robotics, maritime, navigation, aerospace and photonics technologies. With a strong entrepreneurial culture, Exail delivers unrivaled performance, reliability and safety to its civil and defense clients operating in severe environments. From the deep sea to outer space, Exail expands their capabilities with a full range of robust in-house manufactured components, products and systems.

Employing a workforce of 2000+ people worldwide, the company benefits from a global footprint and conducts its business in over 80 countries. Exail was formed by ECA Group and iXblue joining forces in 2022. It is a subsidiary of Exail Technologies, a family-owned company specialized in high-technology.

EXAIL 取り扱い製品

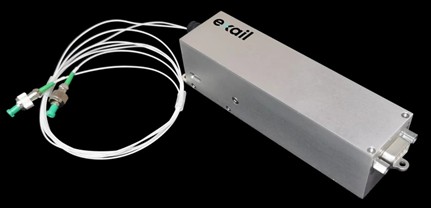

LAZ-LAB-NL-1560

LAZ-LAB-NL-1560

Exail’s single frequency fiber lasers are based on UV Bragg grating technology applied to active rare earth photosensitive fibers. Ultra short cavity length and phase-shifted design permit ultra-narrow linewidth and robust mode-hop-free laser source properties, ideal for various sensor applications (acoustic, interferometry and spectroscopy).

Combined with in-house ultra-stable pump driver and integrated into tailored-made benchtop, it delivers stable single frequency laser line with ultra-low intrinsic noise and linewidth lower than 0.1 kHz.

Available in C-band, LAZ-LAB-NL-1560 is tunable over 1 nm with an output power up to 40 mW and provides a single longitudinal linear polarization.

iMOB780 Series

iMOB780 Series

iMOB780 are fibered optical benches exploiting micro-optics technologies to integrate optical functions such as power splitting, combining, optical switching, frequency shifters, within a compact and ultra-stable package.

Usual free-space optics set-ups are now turned into turn-key maintenance-free fibered sub-systems. They feature remarkable stability and have a high optical power level capability to several watts.

Features
Many configurations available: 1 or 2 inputs, up to 6 outputs
Wide choice of operating wavelength: from 400 nm to 2000 nm
Input power up to 2 W

Applications
Quantum technologies (sensing, communication, simulation, computing)
High-precision measurement
Spectroscopy

Low Vπ LiNbO3 Phase Modulator for High-Power Lasers

Low Vπ LiNbO3 Phase Modulator for High-Power Lasers

Exail’s Low Vπ LiNbO3 phase modulator excels in coherent beam combination, leveraging a single laser source with fine linewidth through multiple amplifications and precise phase modulators. In spectral beam combination, the modulator facilitates combining different laser power beams with distinct wavelengths, achieving uniform intensity distribution. Key optical features include an annealed proton exchange process, very low insertion loss (<3dB), high optical power handling (up to 300mW), and stable performance over temperature and time. The Vπ of only 2V@50 kHz minimizes RF and power consumption, while the device’s DC coupling option mitigates the RAM effect for optimal efficiency.

Aluminum Coated Fibers for Harsh Environment

Aluminum Coated Fibers for Harsh Environment

Exail’s aluminum-coated fibers offer a wide operating temperature range, up to +400°C. They are hermetic to hydrogen and water vapor, mitigating hydrogen darkening in hydrogen-rich environments. The aluminum coating obtained by Exail and Photonics Bretagne is much smoother than what could be obtained by the competition. Exail’s radiation-resistant optical fibers (rad-hard, single mode, multi-mode) are designed to mitigate the effects of Radiation-Induced Attenuation and extend the fiber’s lifetime in radiative environments. Optical fibers with aluminum coating are suitable for applications in sensing and monitoring, such as Distributed Temperature Sensing, in nuclear environments, oil and gas, high-energy physics experiments, or space.

Exail's Intelligent Laser Systems (ILS) and Integrated micro-optics benches (iMOB)

Exail's Intelligent Laser Systems (ILS) and Integrated micro-optics benches (iMOB)

Exail's Intelligent Laser Systems (ILS) enables precise control of lasers amplitude, phase, and absolute frequency with fast tunability. The ILS is mainly dedicated to manipulating rubidium atoms with 780 nm laser light (other wavelengths are possible for other species). Integrated micro-optics benches (iMOB) - a compact and transportable fiber pigtailed free-space micro-optical bench built using a fully active alignment method, offering stability and reproducibility of the measurements by eliminating the needs of regular alignment during system turned on. The integration of the ILS and the iMOB enables real applications in all quantum technology fields, for both academic laboratories and industry.
